Security Bollards

SECURITY BOLLARDS

Security bollards and protection barriers are designed to protect walls, doors, pillars, shelves and other areas of bumps caused by trolleys and pallet trucks.

BOLLARDS AND BUMPERS ASSEMBLING MANUAL

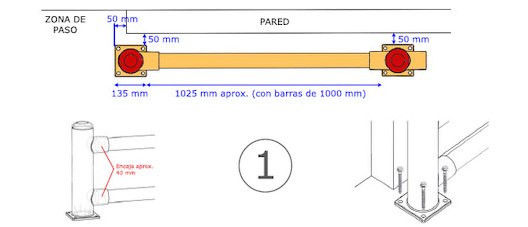

Two Bollards with the correspondent bumpers will be installed first.

Insert Bumpers in the Bollard (40mm approx.).

With a measuring tape, set the position.

We suggest to keep 50mm from the wall or the area to protect (whenever a folding door area is not be affected).

Mark the points to drill and take out the Bollards, proceed to drill with 12mm bit, clean the area and install the Bollard and Bumper on the definitive location.

Fix every Bollard with 4 expansive bolts STD 10×70 with the hammer. Finally we will torque with the wrench.

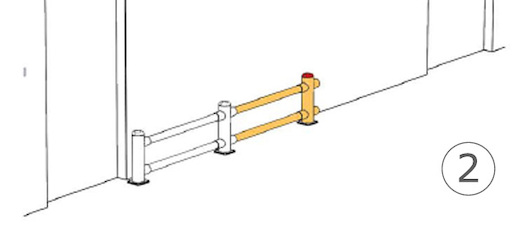

Proceed to install third Bollard with the bumpers.

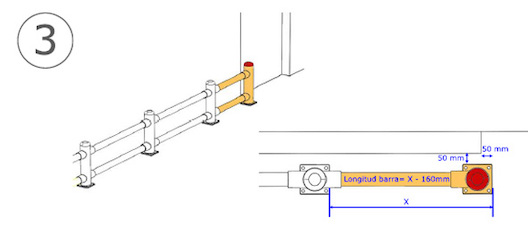

Set bumpers between the second and third Bollard keeping 50mm from the wall.

Repeat all the steps before mentioned for fixation.

Basic short bollard

Basic short bollards with 1 exit to protect walls, doors, beams, shelves, … from unexpected crashes

Basic Bollard 1 Exit

Basic short bollards with 1 exit to protect walls, doors, beams, shelves, … from unexpected crashes

Basic Bollard 2 Exits

Basic short bollards with 1 exit to protect walls, doors, beams, shelves, … from unexpected crashes

Basic Bollard 450mm

Basic large bollards to protect walls, doors, beams, shelves, … from unexpected crashes.

Basic Bollard 2 Exits 450mm

Basic large bollards with 2 exits to protect walls, doors, beams, shelves, … from unexpected crashes.

Basic Bollard 4 Exits 450mm

Basic large bollards with 4 exits to protect walls, doors, beams, shelves, … from unexpected crashes.
